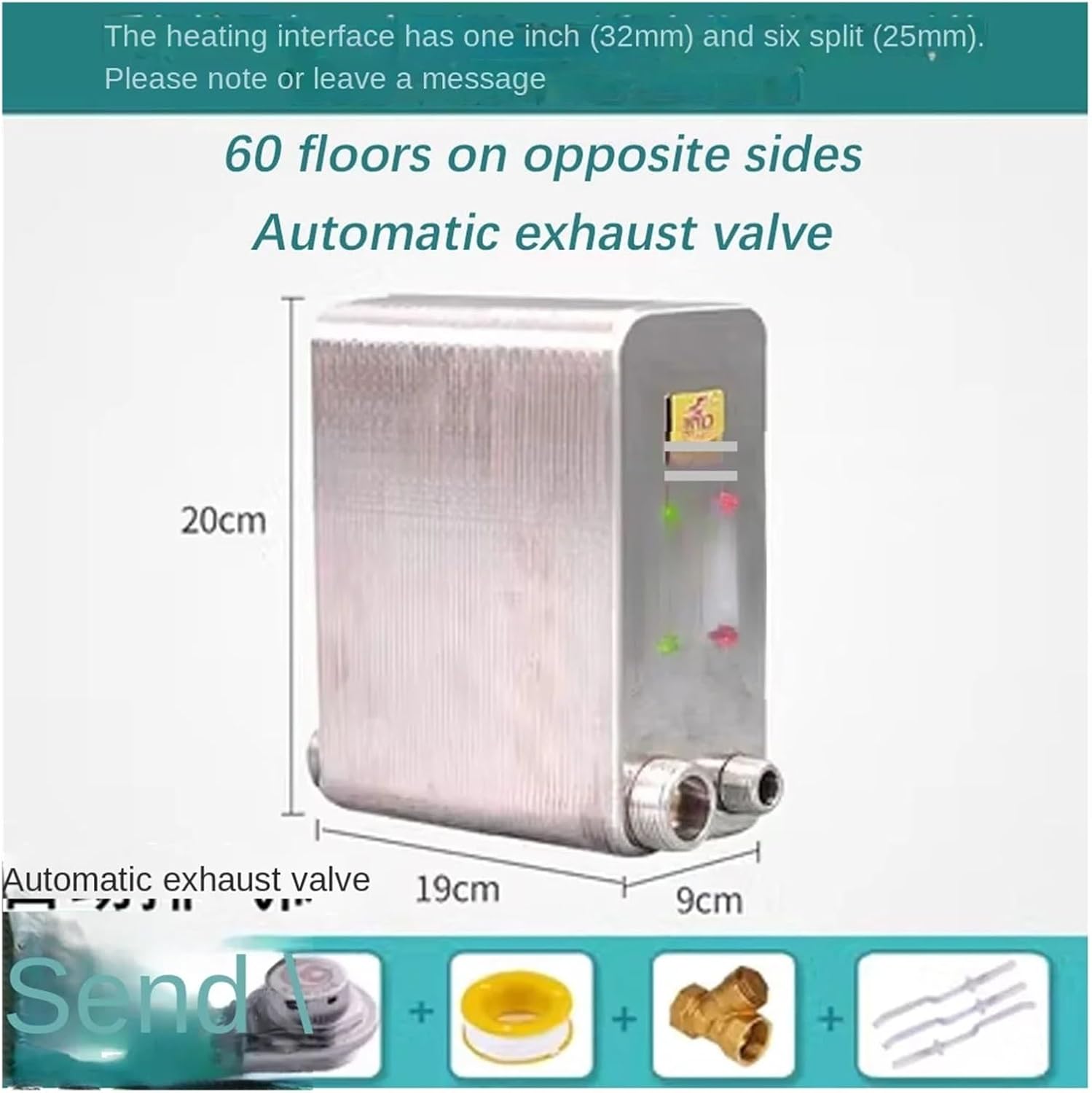

60 Plates Brazed Plate Heat Exchanger Stainless Steel Water Beer Wort Chiller for Home Brewing Beer(4)

60 Plates Plate Heat Exchanger Water Beer Wort Chiller Cooler 304 Stainless Steel For Home Brewing BeerApplication:Home Brew Wort Chiller.Plates Number:60Product Size: 7.48" x 3" x 6.8"(190 x 76 x175mm)Connector thread: 1/2"NPT Male for wort and 3/4"NPT Male for water.Heat Transfer Area/plate: 0.012m2(0.14ft2)Design Pressure:3.0 MpaMonolithic channel sectiion area:(m2):0.000148there will little 1-2cm error for the size, as it measured by hand.pls kindly check.Warning/ SafetyMake sure all connectors are locked when cooling wort. ==========Product Type : Wort ChillersMaterial : Stainless SteelPlates : 60Heating method: : centralized heatingRadiator appearance : ordinary wall mountedFeature 1 : 60 PlatesFeature 2 : Plate Heat ExchangerFeature 3 : Beer Wort ChillerFeature 4 : Water CoolerFeature 5 : 304 Stainless SteeFeature 6 : Home Brewing Beer

• 【Compact Design】feature a design with high thermal conductivity, small size, and minimal space requirements, making them ideal for installations in confined spaces.
• 【High Heat Transfer Efficiency】Due to the corrugated plate design, BPHEs achieve efficient heat transfer and good fluid distribution, enhancing overall heat exchange efficiency.
• 【Low Maintenance Cost】The structure of it lacks gaskets and seals, reducing potential leakage points and maintenance needs, thereby lowering maintenance costs and frequency.
• 【Versatility】it can handle various fluids, including cooling water, refrigerants, and other industrial fluids, making them suitable for a wide range of applications.
• 【Modular Design】The heat exchange area and capacity can be adjusted according to specific requirements, meeting different process demands and application needs.
